The TSX SCP 114 RS 485 physical support card, connects to the UNI‐TELWAY network by the TSX SCP CU 4030 cable via the TSX SCA 50 connection device, or by the TSX SCP CU 4530 cable (provided with SUB-D 15 pin connector) via device TSX SCA 62. The card is inserted in the processor or in the module TSX SCY 21601.
The TSX SCA 50 is passive and made up of a printed circuit board fitted with 3 sets of screw terminal blocks. It is used to connect a station by branching on the main section of a Uni-Telway bus.
It ensures continuing operation of electrical signals, shielding and end of line adaptation function.
The cable of the PCMCIA card has bare wires at its ends which the user must connect to the terminal located inside the device.

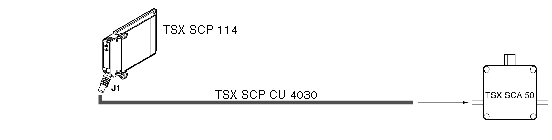

Illustration:
NOTE: The branching device configures the wiring system of the card and a branching type of connection system.

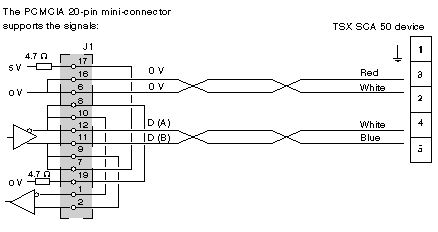

Description of TSX SCP CU 4030 Cable
Illustration:

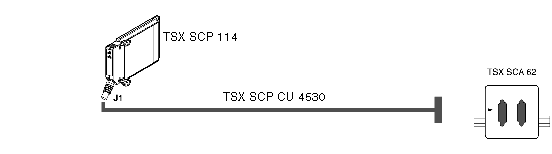

Connection via a TSX SCA 62 Device
Illustration:

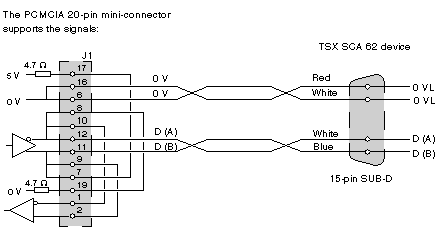

Description of TSX SCP CU 4530 Cable
Illustration:
