Configuring line end adaptation
Line ends are adapted by the S2 switch as indicated below.
-
Configuring the operating mode
The operating mode is selected by switch S1 as indicated below.

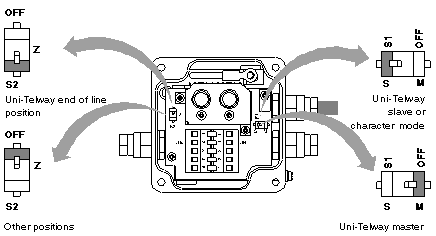

Illustration:
NOTE: The operating mode selected only concerns the connection cable leading to the TER connector on the PLC processor.
