Uni-Telway Master Mode
(Original Document)
About us
Example
A
TSX P ACC 01
device is connected to a Uni-Telway link master PLC as in the example below.
Switches S1 and S2 must be positioned on OFF (master mode).

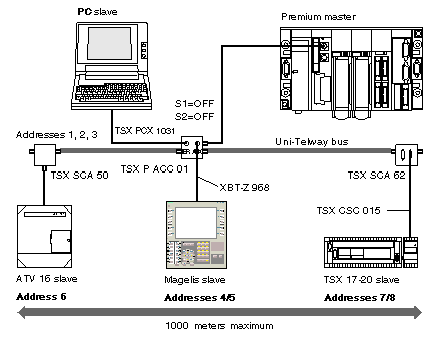

Example on a Premium station:

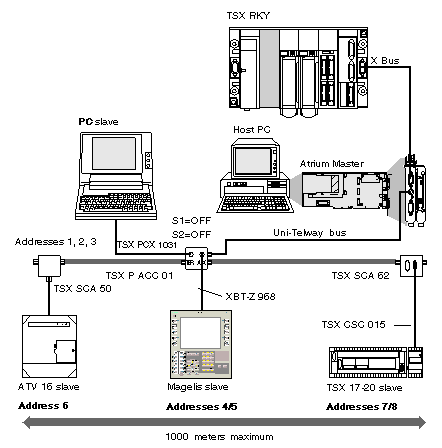

Example on an Atrium station:
