The terminal port on Premium/Atrium PLCs enables them to be connected to a Uni-Telway bus in order to communicate with devices such as speed controllers, sensor/actuators or with other PLCs
Connecting a Premium/Atrium (master or slave) PLC to a Uni-Telway bus requires the use of a
TSX P ACC 01 device.

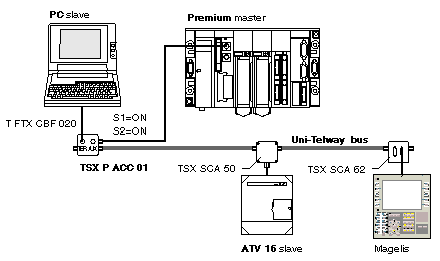

Example of connection:
The connected devices communicate with the PLC using UNI-TE protocol.
Communication between the different components is allowed.
The programming terminal can directly access all these devices to carry out adjustments and diagnostics functions.
NOTE: To install TSX SCA 50 and TSX SCA 62 devices, consult the TSX DG UTW manual: Uni-Telway Bus communication.
