The terminal port on a Premium processor can manage two devices in multidrop: the programming/adjustment terminal and an man-machine interface console.
Each of the two connectors on the processor can receive one of these devices.

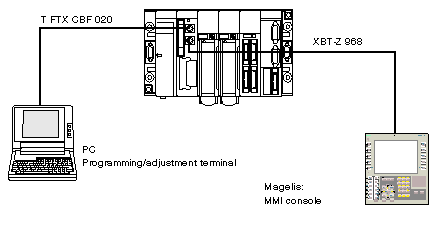

Examples of connection:
NOTE: Each connected terminal can be disconnected without disrupting the operation of the other. When using an Atrium PLC or if the processor only has one terminal port, this type of connection can be made by using a
TSX P ACC 01 device.
