The Uni-Telway slave protocol of the terminal port is used to build a slave Premium or Atrium PLC into a Uni-Telway bus managed by a Premium or Atrium PLC (PCMCIA communication card or terminal port).
For this connection to be possible it is essential to use a TSX P ACC 01 connection device.

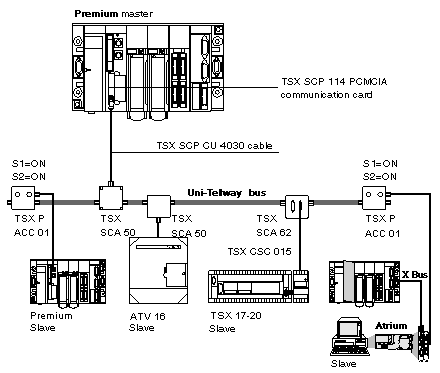

Examples of connection:
A slave PLC manages up to three consecutive link addresses:
