TSX SCY 11601 Module: General
The TSX SCY 11601 module is a simple format module which can be inserted into one of the slots on a Premium/Atrium PLC station rack.
NOTE: The X bus remote is not authorized for this module.

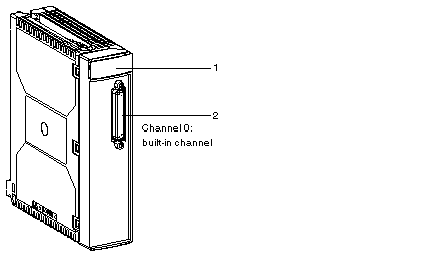

Illustration:
This TSX SCY 11601 module is made up of the following components:
Number
Description
1
Three indicator LEDs on the front of the module:
  • RUN and ERR show the module's status.
  • CH0 displays the status of the built-in serial link channel (channel 0) communication.
2
Built-in channel (Channel 0) has a 25 pin SUB-D female connector, half duplex mode (channel 0) RS 485 base link:
  • Modbus
TSX SCY 21601 Module: General
The TSX SCY 21601 module is a simple format module which can be inserted into one of the slots on a Premium/Atrium PLC station rack.
NOTE: The X bus remote is not authorized for this module.

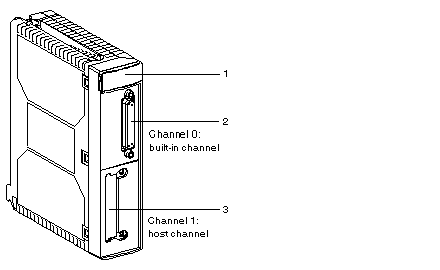

Illustration:
This module is made up of the following elements:
Number
Description
1
Three indicator LEDs on the front of the module:
  • RUN and ERR show the module's status.
  • CH0 displays the status of the built-in serial link channel (channel 0) communication.
2
Built-in channel has a 25 pin SUB-D female connector, half duplex mode (channel 0) RS 485 base link:
  • Uni-Telway
  • Modbus
  • Character Mode
3
PCMCIA type III (channel 1) host channel
Insertable Cards
Different communication cards which can be built into the TSX SCY 21601 module's host channel:
Type
Description
Illustration
TSX SCP 111
Multiprotocol card (Uni-Telway, Modbus, Character Mode), RS 232, 9 non-isolated signals
TSX SCP 112
Multiprotocol card (Uni-Telway, Modbus, Character Mode), current loop (BC 20 mA)
TSX SCP 114
Multiprotocol card (Uni-Telway, Modbus, Character Mode), RS 485, RS 422 compatible isolated
TSX FPP 20
Fipway network cards
