Terminal Port Connector Pin Configuration
(Original Document)
About us
General

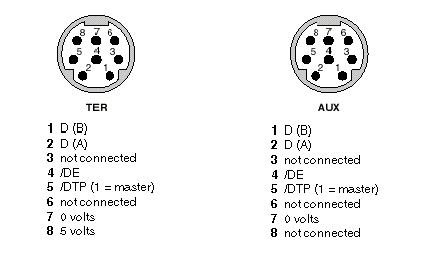

The terminal port connectors marked TER and AUX are 8-pin mini-DIN which can be locked.
The signals are given below:
NOTE:
The operation of the terminal port depends on two parameters:
  • signal status/DTP (0 or 1), fixed by cabling accessory (TSX P ACC 01 cable)
  • software configuration of the terminal port defined in Control Expert
The table below defines the functioning mode of the terminal port according to these two parameters:
Control Expert Configuration
Signal /DTP = 0
Signal /DTP = 1
Uni-Telway master
Terminal port in Uni-Telway slave mode (default)
Terminal port in Uni-Telway master mode
Slave Uni-Telway
Terminal port in Uni-Telway slave mode
Terminal port in Uni-Telway master mode (default)
Character mode
Terminal port in character mode
Terminal port in Uni-Telway master mode (default)
