Example of a Direct Exchange from a Slave to a Slave System
(Original Document)
At a Glance

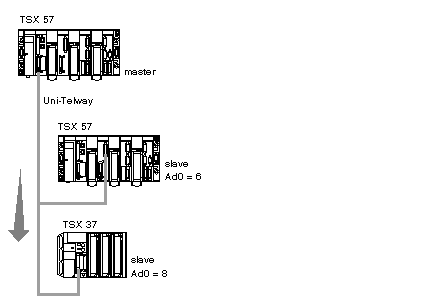

The host channels of processors TSX 37 V2.0 and module TSX SCY 21601 equipped with PCMCIA cards (TSX SCP111, 112, 114 version 1.5) enable you to use the communication functions READ_VAR and WRITE_VAR from a slave of the same Uni-Telway link:
Transmission
From module SCY 21601 in position 0 of the slave rack and through the built-in link, access to the server of slave 8:
READ_VAR(ADDR('0.2.0.8'), '%MW', 0, 5, %MW50:4, %MW20:5)
