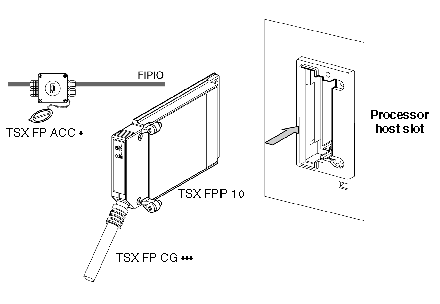

The TSX FPP 10 PCMCIA card is connected to the Fipway bus using a connector such as a TSX FP ACC 3 or TSX FP ACC 4.
To connect the PCMCIA card to the ACC3/ACC4 connector the user may use:
-
Either a 1 m cable, product reference TSX FP CG 010.
-
Or a 3 m cable, product reference TSX FP CG 030.
Items required for connecting a Premium/Atrium PLC to the remote inputs/outputs Fipio bus:
