Communication from a Fipio Agent

At a Glance

A PLC declared as a Fipio Agent can communicate:

Address Settings

The syntax of an address is as follows:

ADDR('\2.4\SYS')

The following table describes the address parameters:

Parameter	Description
2.4	2 : corresponds to the Fipio bus number 4 : corresponds to the destination connection point
SYS	Corresponds to the server address.

Example

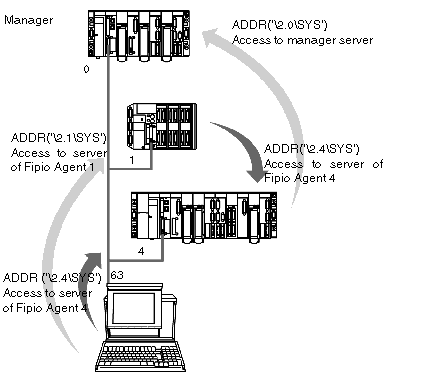

Example of How Different PLCs Access the System

The Fipio Agent PLC at address 1 reads 10 words from the Fipio Agent at address 4.

READ_VAR(ADDR('\2.4\SYS'), '%MW',0,10, %MW100:4,%MW10:10)
