How to Modify the Parameters of a Standard Profile
(Original Document)
About us
At a Glance
The following procedures are applicable for configuration or adjustment parameters.
How to Modify the Display Base
The following procedure describes how to select the display base. In the example, the chosen base is binary.
Step
Action
1
In the Configuration area, select the Value cell of the word to be modified.
2
Select Binary from the contextual menu (right-click).
Result: the cell displays 2#1011 0000 0000 0000.
How to Enter a Value Using the Keyboard
The following procedure describes how to enter a value in a cell.
Step
Action
1
In the Configuration area, select the Value cell of the word to be modified.
2
Enter the value using the keyboard.
Note: keyboard entry depends on the display base.
How to Enter a Value in Binary Format
The following procedure describes how to enter a value in binary format.
Step
Action
1
Double click on the Value cell in the Configuration area of the word to be modified.

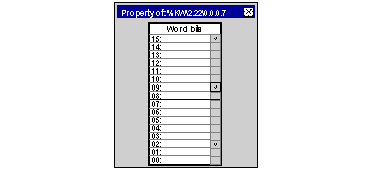

Result: the following window appears.
2
Select the bits to be set to 1.
3
Close the Properties ... window by clicking on the cross in the top right-hand corner of the window.
Result: Closing the window confirms the entered value and it is displayed in the cell format.
