Examples of Validation Refusals
(Original Document)
About us
At a Glance
The following examples cover the main reasons for refusal that you are likely to encounter.

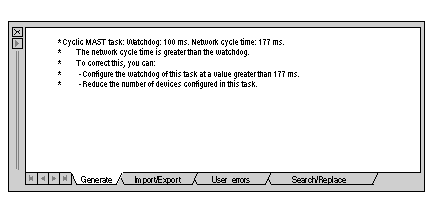

Example 1
The MAST task is configured in cyclic mode.
This network cycle time is greater than the watchdog time.

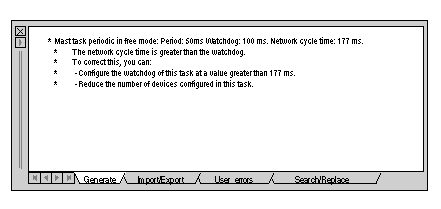

Example 2
The MAST or FAST task is configured in free periodic mode.
This network cycle time is greater than the watchdog time.
Example 3
The MAST or FAST task is configured in controlled periodic mode.
This network cycle time is greater than the period.
