Configuration of TCP/IP Messaging (TSX P57 6634/5634/4634)

Introduction

In order to use the channel of the TSX P57 6634/5634/4634 module to communicate on Ethernet, it is necessary to set the messaging configuration parameters.

Accessing Messaging

Messaging is configured in the two windows accessible by the tabs: IP Configuration and Messaging. To access the configuration parameters for TCP/IP services:

Step	Action
1	Access the module configuration screen.

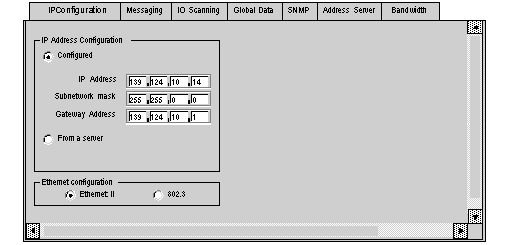

2	Select the IP Configuration tab:

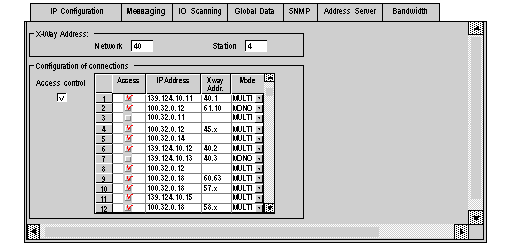

3	Select the Messaging tab:

Configuring Messaging

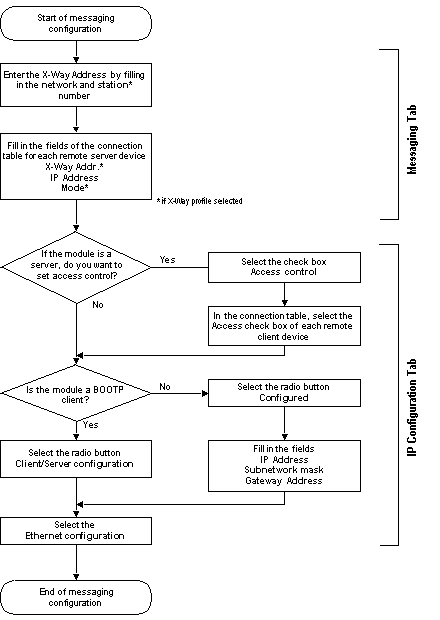

The following procedure gives the configuration principle:
