Configuration of SNMP (TSX ETY 110)
Original instructions
About us
Introduction
In order to use the TSX ETY 110 module as an SNMP agent, it is necessary to set the SNMP configuration parameters.
Access the SNMP
To access the configuration parameters for SNMP:
Step
Action
1
Access the configuration screen module (Network directory in the Project browser).
2
Click the SNMP tab.

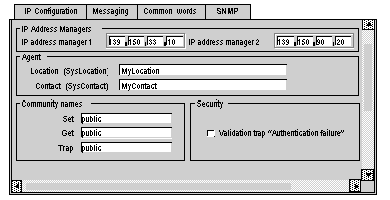

Result: The following window appears:
Configuring SNMP
To configure SNMP:
Step
Action
1
Enter the SNMP manager addresses:
  • Manager 1 IP addresses
  • Manager 2 IP addresses
2
Fill in the fields:
  • Location (SysLocation)
  • Contact (SysLocation).
3
If you want to set access rights, fill in the community names:
  • Set
  • Get
  • Trap
4
If you want to activate transmission of an event to the module, check the Activate "Authentication Failure" trap box.
