Physical Description of the TSX ETY 110
Original instructions
About us

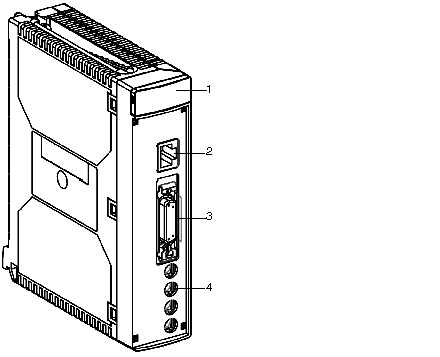

Illustration
The TSX ETY 110 module is a single (half size) module that is inserted in a rack slot of a Premium PLC station.
1
display panel indicating state of module
2
standard connector for 10baseT (RJ45) interface
3
standard connector for 10base5 (AUI) interface
4
thumbwheel to define station number and network number
