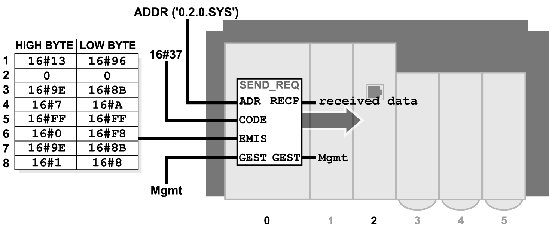

The graphic shows you how to set IP parameters for the ETY module in slot 2 with the SEND_REQ block:
Note:
-
ADR: reflects the ETY’s position in slot 2.
-
CODE: reflects the value of the REQUEST_CODE.
-
EMIS: contains the IP parameters in Data_to_Send:
-
GEST: reflects Management_Param (management parameters).
You have to assign a time to the third word of Management_Param. The fourth word should have the INT value 18.
-
RECP: This parameter requires a minimum INT value of 1, even when no response message is returned, as in the case of an IP change request..
