How to select the hardware type
|
|
|
(Original Document)
|
|
How to select the hardware type
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
From the Driver Manager window, choose the PCX57 tab, then click Hardware Wizard followed by Next.
Result

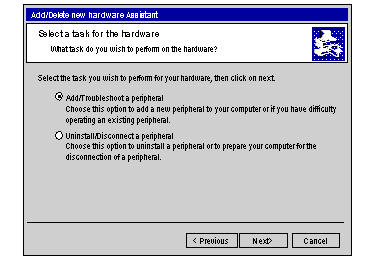

The following window appears:
 |
|
2
|
Select the option Add/Troubleshoot a peripheral then click Next.
Result

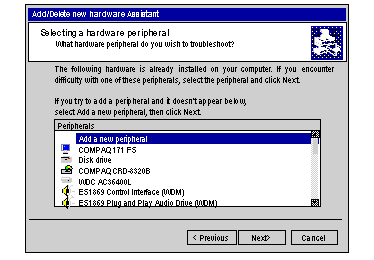

The following window appears:
 |
|
3
|
Select the option Add a new peripheral. Then click on Next.
|
|
4
|
Answer No to the question Do you want Windows to search for your new hardware?
|
|
5
|
Click on Next.
Result

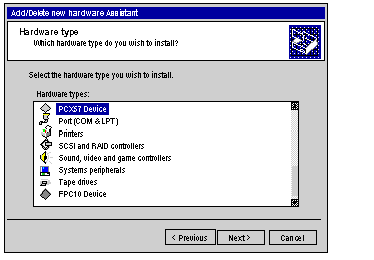

The following window appears:
 |
|
6
|
Select PCX57 Device from the list then click on Next.
|
|
7
|
Select PCX57 WDM Device from the list then click on Next.
|
|
8
|
Go to the next procedure: how to configure hardware parameters.
|
