At a Glance
The configuration tool is used to configure the driver to use the TSX FPP 20 card on Fipway or Fipio network.
The configuration tool can be accessed from the taskbar Start → Settings → Control Panel → Driver Manager.
Select the tab corresponding to the driver to be configured, then click the Configuration button.
Illustration

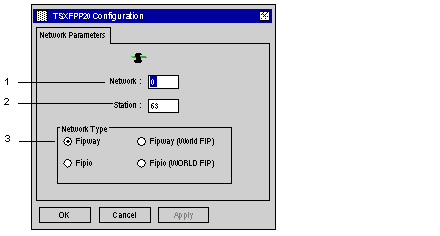

The screen dedicated to the card driver looks like this:
Description
This table describes the different areas which make up the configuration screen:
Number
Element
1
This field is used to set the network address (between 0 and 127.
2
This field is used to set the station address. (between 0 and 63
3
This window is used to select the type of Fipway or Fipio connection.
This table describes the configuration tool is used to configure the driver to use the TSX FPP OZD 200
Number
Element
1
This field is used to set the network address between 0 to 127
2
This field is used to set the station address between 0 to 32
