Transitions
(Original Document)
At a glance
The next tasks, written in LD, are used in different transitions of the grafcet.

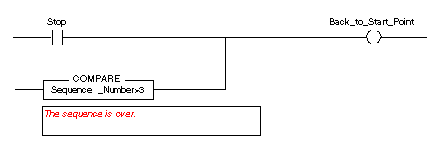

Back_to_Start_Point transition
The action associated to the Back_to_Start_Point transition is as follows:

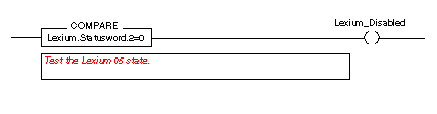

Lexium_Disabled transition
The action associated to the Lexium_Disabled transition is as follows:
