Example Description

At a Glance

This example is given for educational purposes. It allows you to follow the different stages in the configuration of a CANopen structure made up of:

A TSX CPP 110 master module installed in a premium PLC,
With two Advantys STB slave devices:
- Node # 2: a CANopen STBNCO2212 interface, an STBPDT3100 power supply module, an STBDDI3420 4 input module and an STBDDO3410 4 output module.
- Node # 3: configuration identical to that for node 2 with in addition, an STBAVI1270 module with two analog inputs and an STBAVO1250 module with two analog outputs.

Illustration

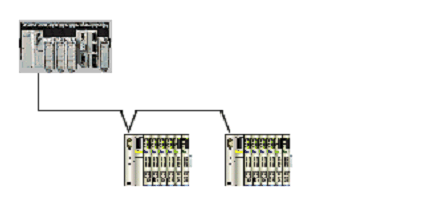

The illustration below is a diagram of the structure used in the example.

Software Required

Implementation of this example requires the following software:

NOTE: Unity Pro is the former name of Control Expert for version 13.1 or earlier.
