Characteristic Curves
The function block has the following characteristic curve:

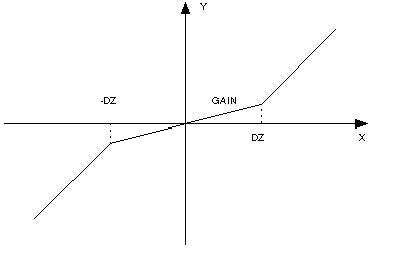

Dead zone with 0 <
GAIN
< 1

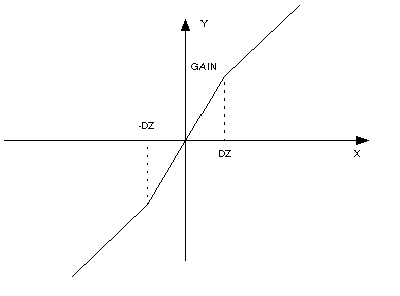

Dead zone with
GAIN
> 1

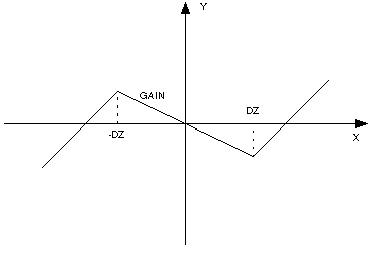

Dead zone with
GAIN
< 0
NOTE:
A gradient of 1 has been specified outside the dead zone.
