Function Block Examples
Original instructions
Overview
In these examples:

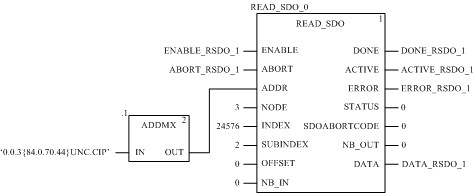

READ_SDO Example in FBD
This example is executing a READ_SDO of the object defined at Index 6000 hex and SubIndex 02 hex (Digital Input 8 bits Pin 2):

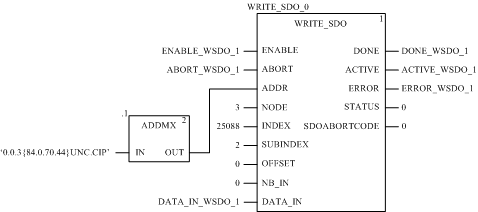

WRITE_SDO Example in FBD
This example is executing a WRITE_SDO of the object defined at Index 6200 hex and SubIndex 02 hex (Write Outputs 9 to 16):
