The AS-i V2 protected operating mode is the mode generally used for a project which is running.
It assumes that the AS-i V2 module is configured in Control Expert.
This:
-
continually checks that the list of detected slaves is the same as the list of provided slaves,
-
monitors the power supply.
In this mode, a slave will only be activated if it has been declared in the configuration and been detected.
Principle of activating a slave

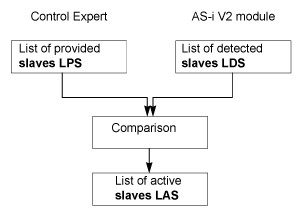

The diagram below shows the principle of activating AS-i V2 slaves.
