Step
|
Action
|
|---|---|
|
1
|

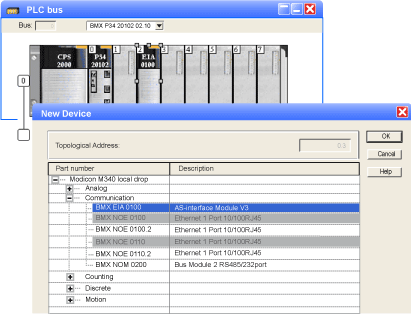

Add the BMX EIA 0100 module from the module library to the configuration.
 |
|
2
|
Double-click the module in the PCL bus screen.
Result: A configuration dialog box appears.
|
|
3
|

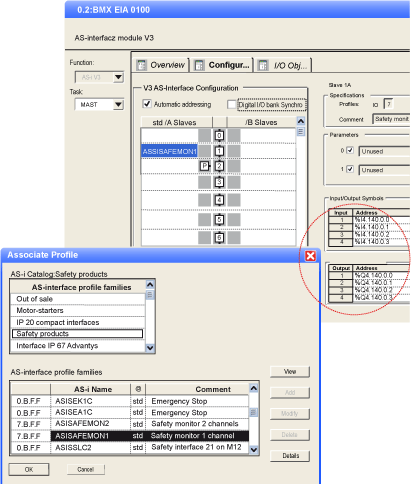

Add the AS-Interface Safety monitor in the Associate Profile window.
Result: A list of addresses for the DFB Inputs and Outputs appear (inside red circle).
 |
|
4
|
Enter the AS-Interface configuration settings
NOTE: You can also view the AS-Interface bus configuration in the project browser Configuration. |
 CAUTION |
|
MISINTERPRETATION OF DIAGNOSIS

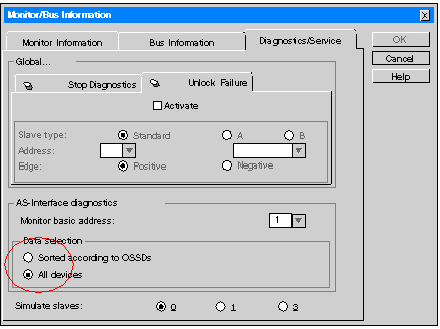

The settings of the DFB for Output_Sorted must be the same as the settings in the ASISWIN software in the Monitor/Bus Information dialog box, Diagnostics/Service → Data Selection tab.
Otherwise, the diagnostics information is misinterpreted in Control Expert.
Failure to follow these instructions can result in injury or equipment damage.
|
|

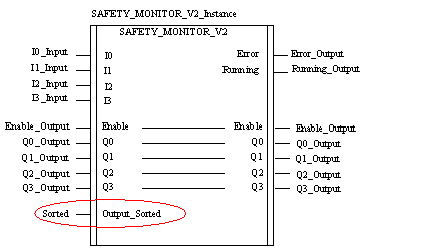

Output_Sorted
|
Meaning
|
|---|---|
|
1
|
Diagnostics sorted according to OSSDs (no pre-processing)
|
|
0
|
Diagnostics of all devices
|
