At a Glance
This command allows the movement of the selected AS-Interface device to another available address. This address modification can only be done on a slave and not in the configuration, thus the physical configuration and software configuration are different afterward.
Address Modification Procedure
The the procedure below modifies the address of a slave device:
Step
Action
1
Access the AS-Interface module debug screen.
2
Select a slave in the V3 AS-interface configuration then execute the command Edit → Modify the address of an AS-i slave.

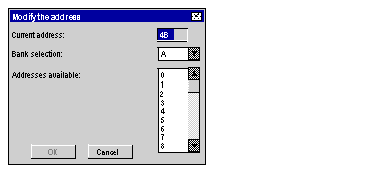

Result: The Modify the address window for a new address is displayed:
3
Select bank A or B in Bank Selection.
Note: Bank B cannot be selected if a standard slave is selected because they are only configured on bank A.
4
Select the required address in the list of Available addresses (use the scroll bar if necessary).
5
Confirm the selection with OK.
