General Presentation of X80 Analog I/O Modules

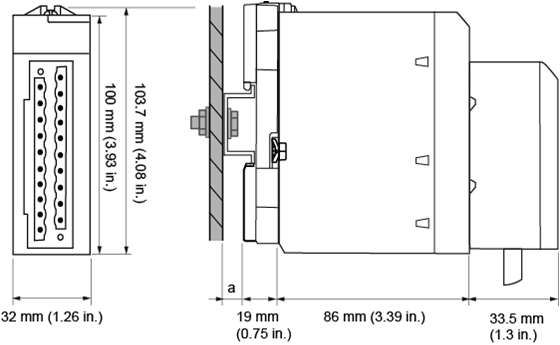

X80 Analog I/O Module with a 20-pin removable terminal blocks :
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.

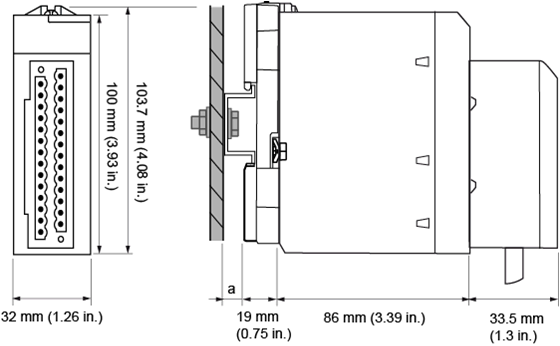

X80 Analog I/O Module with a 28-pin removable terminal blocks :
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform. Refer to Mounting the Racks.

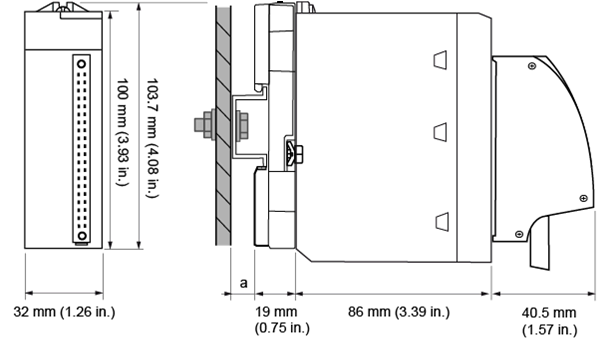

X80 Analog I/O Module with a 40-pin FCN-type connector
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.
Dimensions of X80 Analog Modules
Module reference
Module dimensions
Installation depth(1)
Width
Height
Depth
X80 Analog I/O Module with a 20-pin removable terminal block
BMXAMI0410(H)
32 mm (1.26 in.)
103.7 mm (4.08 in.)
86 mm (3.39 in.)
119.5 mm (4.69 in.)(1)
BMXAMO0210(H)
BMXAMO0410(H)
BMXAMO0802(H)
BMXAMM0600(H)
X80 Analog I/O Module with a 28-pin removable terminal block
BMXAMI0800(H)
32 mm (1.26 in.)
103.7 mm (4.08 in.)
86 mm (3.39 in.)
119.5 mm (4.69 in.)(1)
BMXAMI0810(H)
X80 Analog I/O Module with a 40-pin FCN-type connector
BMXART0414(H)
32 mm (1.26 in.)
103.7 mm (4.08 in.)
86 mm (3.39 in.)
126.5 mm (4.96 in.)(1)
BMXART0814(H)
(1)
DIN-rail depth (a) is not included.
NOTE: Connectors that are delivered with the X80 Analog I/O modules (20-pin and 28-pin removable terminal blocks, and 40-pin FCN-type connector) and the corresponding pre-assembled cordsets (BMXFTW*01S, BMXFTW*08S, and BMXFCW*01S) have the same dimensions.
NOTE: Consider clearance for cable installation and spacing around the racks.
