Use of the TELEFAST Wiring Accessories
Original instructions
About us
Introduction
The TELEFAST pre-wired system consists of connecting cables and interface sub-bases as shown below:
1
BMX AMO 0410 module
2
BMXFCA••0 connecting cable
3
ABE-7CPA21 interface sub-base
4
Shield bar
5
Clamp
BMX FCA ••0 Connecting Cables
The BMX FCA ••0 cables are pre-assembled cord set, made up of:
The figure below shows the BMX FCA ••0 cables:
1
BMX FTB 2020 Terminal block
2
Cable shielding
3
25-pin Sub-D connector
L
Length according to the part number.
The cable comes in 3 different lengths:
The following table gives the characteristics of the BMX FCA ••0 cables:
Characteristic
Value
Cable
Sheath material
PVC
LSZH status
No
Environmental
Operating temperature
-25...70 °C (-13...158 °F)
Connecting Actuators

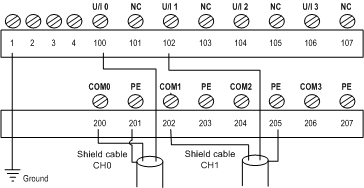

The analog outputs are accessible on the terminals of the TELEFAST ABE-7CPA21 as follows:
The following table shows the distribution of analog channels on the TELEFAST ABE-7CPA21 terminal block with a BMX FCA ••0 cable:
TELEFAST terminal block number
25-pin Sub-D connector pin number
BMXAMO0410 pin out
Signal type
TELEFAST terminal block number
25-pin Sub-D connector pin number
BMXAMO0410 pin out
Signal type
1
/
Ground
Supp 1
/
Ground
2
/
STD (1)
Supp 2
/
Ground
3
/
STD (1)
Supp 3
/
Ground
4
/
STD (2)
Supp 4
/
Ground
100
1
1
U/I0
200
14
2
Com 0
101
2
NC
201
/
Ground
102
15
7
U/I1
202
3
8
Com 1
103
16
NC
203
/
Ground
104
4
11
U/I2
204
17
12
Com 2
105
5
NC
205
/
Ground
106
18
17
U/I3
206
6
18
Com 3
107
19
NC
207
/
Ground
NC: Not Connected
NOTE: The strap with the ABE-7CPA21 must be removed from the terminal, otherwise the signal ground of channel 0 will be connected to earth.
For the ground connection use the additional terminal block ABE-7BV20.
