Introduction
The actuators are connected using the 20-point terminal block.
Illustration

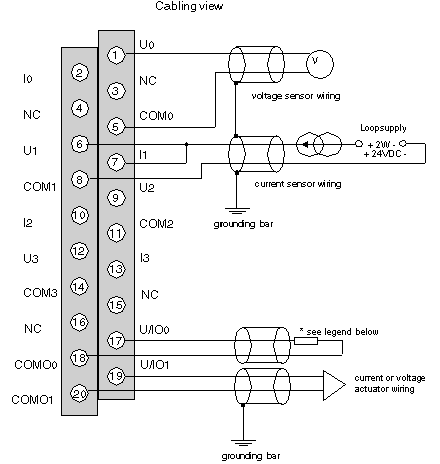

The terminal block connection, the sensors, and the actuators wiring are as follows.
Ux
+ pole input for channel x
COMx
- pole input for channel x
U/IOx :
+ pole output for channel x
COMOx
- pole output for channel x
*
The current loop is self-powered by the output and does not request any external supply.
