Presentation

Function

The BMX AMM 0600 Input/Output module combines 4 non-isolated analog inputs with 2 non-isolated analog outputs.

The BMX AMM 0600 module offers the following range, according to the selection made during configuration:

Voltage input range +/-10 V/0..10 V/0..5 V/1..5 V
Current input range 0...20 mA/4...20 mA
Voltage output range +/-10 V
Current output range 0...20 mA/4...20 mA

Ruggedized Version

The BMX AMM 0600H (hardened) equipment is the ruggedized version of the BMX AMM 0600 (standard) equipment. It can be used at extended temperatures and in harsh chemical environments.

For more information, refer to chapter Installation in More Severe Environments.

Illustration

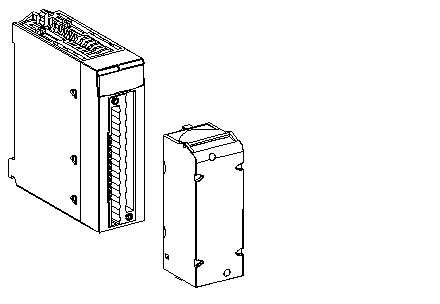

BMX AMM 0600 analog input/output module looks like this.

NOTE: The 20-pin terminal block is supplied separately.
