Introduction

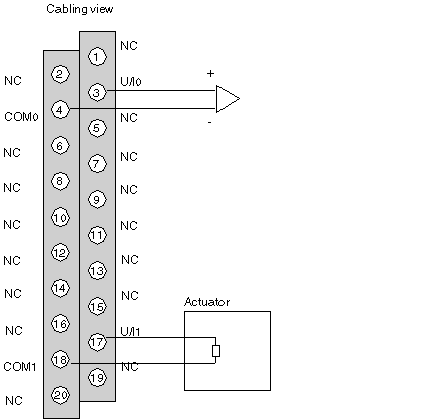

The actuators are connected using the 20-point terminal block.
Illustration
The current loop is self-powered by the output and does not request any external supply. The terminal block connection and the actuators wiring are as follows.
U/Ix
+ pole input for channel x
COMx
- pole input for channel x
Channel 0:
Voltage actuator
Channel 1:
Current actuator
