Presentation

Function

The BMX AMO 0210 is a module with two analog outputs isolated from one other. It offers the following ranges for each output:

Voltage +/-10 V
Current 0..20 mA and 4..20 mA

The range is selected during configuration.

Ruggedized Version

The BMX AMO 0210H (hardened) equipment is the ruggedized version of the BMX AMO 0210 (standard) equipment. It can be used at extended temperatures and in harsh chemical environments.

For more information, refer to chapter Installation in More Severe Environments.

Illustration

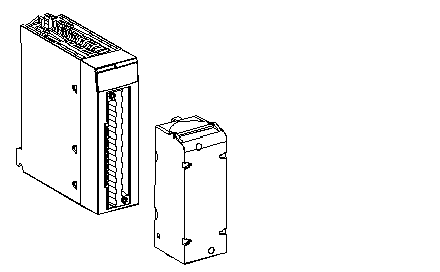

The BMX AMO 0210 analog output module looks like this.

NOTE: The terminal block is supplied separately.
