Modifying the Display Format for a Current or Voltage Input Channel

At a Glance

This parameter defines the display format for the measurement of an analog module channel whose range is configured for voltage or current.

The display format may be:

Instructions

The following table provides step-by-step instructions defining the display scale assigned to an analog module channel.

Step	Action
1	Access the hardware configuration screen for the appropriate module.
2	Click in the cell of the Scale column for the channel you wish to configure. Result: an arrow appears.

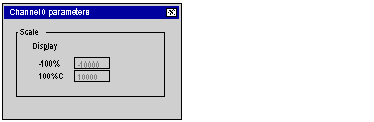

3	Click on the arrow in the cell of the Scale column for the channel you wish to configure. Result: The Channel Parameters dialog box appears.
4	Type in the values to be assigned to the channel in the two Display boxes situated in the Scale zone.
5	Confirm your changes by closing the dialog box Note : If default values have been selected (standardized display), the corresponding cell in the Scale column displays %... If not, it displays the word User (user-defined display).
6	Validate the change with Edit → Validate.
