TSX AEY 414 Screw Terminal Block TSX BLY 01
(Original Document)
About us
At a Glance
The module TSX AEY 414 is connected using the screw terminal block TSX BLY 01.
Terminal Block Pins

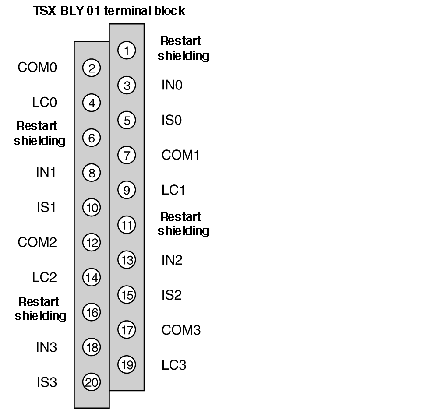

The connections of theTSX BLY 01 screw terminal block are shown below:
INx
+ Pole input of channel x
COMx
- Pole input of channel x
ISx
+ Pole supply of the probe
LCx
Line compensation
