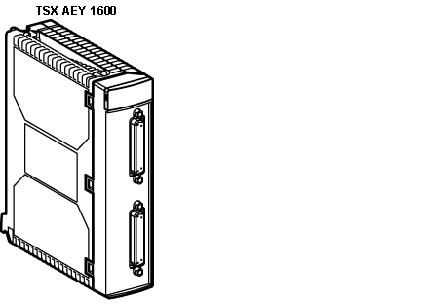

The TSX AEY 1600 module is a high level 16 input industrial measurement device.

It is associated with sensors or transmitters, and performs monitoring, measurement and continuous process functions.

For each of its inputs, the TSX AEY 1600 module offers the range +/-10 V, 0..10 V, 0..5 V, 1..5 V, 0..20 mA or 4..20 mA, according to the selection made in configuration.
