TELEFAST 2 Pin Assignment for the TSX AEY 800 Module
(Original Document)
About us
At a Glance

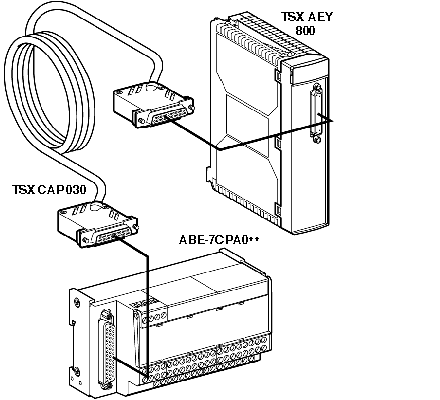

The TSX AEY 800 analog module is connected to a TELEFAST 2 accessory through the TSX CAP030 cable which guarantees continuous shielding. There are several types of connection base:
ABE-7CPA02
The distribution of analog channels on TELEFAST 2 terminal blocks with the reference ABE-7CPA02 is as follows:
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
1
/
Ground
Supp 1
/
Ground
2
/
STD (1)
Supp 2
/
Ground
3
/
STD (1)
Supp 3
/
Ground
4
/
STD (2)
Supp 4
/
Ground
100
1
+IV0
200
14
COM0
101
2
+IC0
201
/
Ground
102
15
+IV1
202
3
COM1
103
16
+IC1
203
/
Ground
104
4
+IV2
204
17
COM2
105
5
+IC2
205
/
Ground
106
18
+IV3
206
6
COM3
107
19
+IC3
207
/
Ground
108
7
+IV4
208
20
COM4
109
8
+IC4
209
/
Ground
110
21
+IV5
210
9
COM5
111
22
+IC5
211
/
Ground
112
10
+IV6
212
23
COM6
113
11
+IC6
213
/
Ground
114
24
+IV7
214
12
COM7
115
25
+IC7
215
/
Ground
Legend
+IVx
+ pole voltage input for channel x
+ICx
+ pole current input for channel x
COMx
- pole voltage or current input for channel x
NOTE: Removal of the connector is detected by a strap linking terminal blocks STD (1) and STD (2).
NOTE: For the ground connection use the additional terminal block ABE-7BV20.
ABE-7CPA03
The distribution of analog channels on TELEFAST 2 terminal blocks with the reference ABE-7CPA03 is as follows:
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
1
/
0 V
Supp 1
/
24 V (sensor supply)
2
/
0 V
Supp 2
/
24 V (sensor supply)
3
/
0 V
Supp 3
/
0 V (sensor supply)
4
/
0 V
Supp 4
/
0 V (sensor supply)
100
/
IS1
200
/
IS0
101
15
+IV1
201
1
+IV0
102
16
+IC1
202
2
+IC0
103
/
Ground
203
14/3
COM0 / COM1
104
/
IS3
204
/
IS2
105
18
+IV3
205
4
+IV2
106
19
+IC3
206
5
+IC2
107
/
Ground
207
17/6
COM2 / COM3
108
/
IS5
208
/
IS4
109
21
+IV5
209
7
+IV4
110
22
+IC5
210
8
+IC4
111
/
Ground
211
20/9
COM4 / COM5
112
/
IS7
212
/
IS6
113
24
+IV7
213
10
+IV6
114
25
+IC7
214
11
+IC6
115
/
Ground
215
23/12
COM6 / COM7
Legend
ISx
24 V channel power supply
+IVx
+ pole voltage input for channel x
+ICx
+ pole current input for channel x
COMx
- pole voltage or current input for channel x
NOTE: For the ground connection use the additional terminal block ABE-7BV10.
