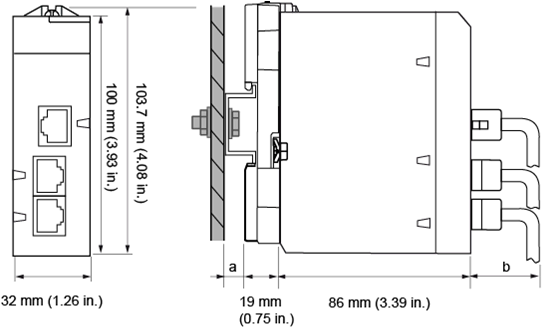

Dimensions of X80 BMXNOM0200(H) Serial Link Module
|
|
|
Original instructions
|
|
Dimensions of X80 BMXNOM0200(H) Serial Link Module
|
|
|
Original instructions
|
aDIN-rail depth: the value depends on the DIN-rail type used in your platform.
bWiring depth: the value depends on the connector and the wires used in your platform.
|
Module reference
|
Module dimensions
|
Installation depth(1)
|
||
|---|---|---|---|---|
|
Width
|
Height
|
Depth
|
||
|
BMXNOM0200(H)
|
32 mm (1.26 in.)
|
103.7 mm (4.08 in.)
|
86 mm (3.39 in.)
|
105 mm (4.13 in.)(1)
|
(1)DIN-rail depth (a) and wiring depth (b) are not included. |
||||
