Dimensions of X80 Power Supply Modules
Original instructions
General Presentation of X80 Power Supply Modules

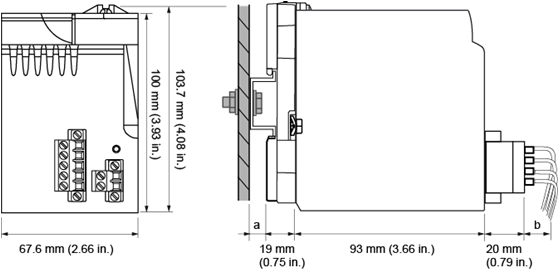

Standalone Power Supply Module
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.
b
Wiring depth: the value depends on the connector and the wires used in your platform.

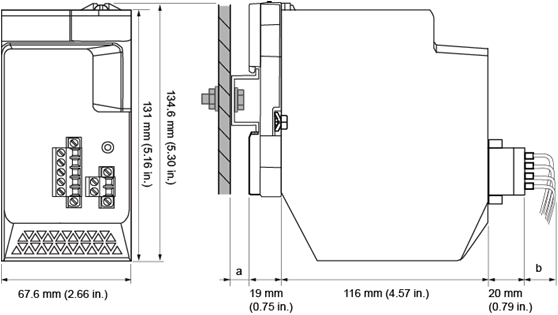

Redundant Power Supply Module
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.
b
Wiring depth: the value depends on the connector and the wires used in your platform.
Dimensions of X80 Power Supply Modules
Module reference
Module dimensions
Installation depth(1)
Width
Height
Depth
Standalone Power Supply Modules
BMXCPS2000
67.6 mm (2.66 in.)
103.7 mm (4.08 in.)
93 mm (3.66 in.)
113 mm (4.45 in.)(1)
BMXCPS3500(H)
BMXCPS2010
BMXCPS3020(H)
BMXCPS3540(T)
Redundant Power Supply Modules
BMXCPS4002(H)
67.6 mm (2.66 in.)
134.6 mm (5.30 in.)
116 mm (4.57 in.)
136 mm (5.35 in.)(1)
BMXCPS4022(H)
BMXCPS3522(H)
(1)
DIN-rail depth (a) and wiring depth (b) are not included.
NOTE: Connectors that are delivered with the X80 Power Supply modules (caged clamp terminal blocks) and removable connector kits (BMXXTSCPS10 and BMXXTSCPS20) have the same dimensions.
NOTE: Consider clearance for cable installation and spacing around the racks.
