Module Hardware Diagnostics
(Original Document)
About us
LED Indicators

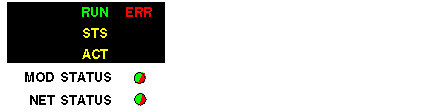

The TSX ETC 101 Ethernet communication module displays the following LED indicators:
LED Descriptions
Use the LED display to diagnose the state of the Ethernet communication module, as follows:
LED
Color
Description
RUN
Green
  • Off: Indicates that the module is not communicating with the CPU over the backplane.
  • Steady Green: Indicates that the module is communicating with the CPU over the backplane.
ERR
Red
  • Off: Indicates one of the following states:
    • Power is not being supplied to the module.
    • The module is running a self test.
    • The module is operating normally.
  • Steady Red: Indicates one of the following states:
    • The module is not operational.
    • The module has detected at least one event.
  • Flashing Red: The module is in one of the following states:
    • The module is not configured, or is being configured.
    • The module is not receiving an X-Bus variable that should come periodically or cyclically from the PLC.
STS
Amber
  • Off: No power is being supplied to the module, or the module is not operational.
  • Steady Amber: The module is configured and operational.
  • Two flashes: The module does not have valid IP parameters.
  • Three flashes: The Ethernet link is not connected.
  • Four flashes: The module has detected a duplicate IP address.
  • Five flashes: The module is configured as a BOOTP client and is waiting for a BOOTP server response.
  • Six flashes: The module is using its default IP configuration.
  • Seven flashes: The module has detected a configuration error.
Note: If more than one of the above conditions is detected, the module will display the condition identified by the sequence of fewest flashes.
ACT
Amber
  • Off: There is no transmit or receive activity on the Ethernet link.
  • Flashes Amber: Indicates transmit or receive activity.
MOD STATUS
Green/ Red
  • Off: Power is not being supplied to the module.
  • Steady Green: The module is operating normally.
  • Flashing Green: The module has not been configured.
  • Steady Red: The module has detected a major event.
  • Flashing Red: The module has detected a recoverable event.
NET STATUS
Green/ Red
  • Off: Power is not being supplied to the module or the module does not have an IP address assigned.
  • Steady Green: The module has established at least one CIP connection.
  • Flashing Green: The module has obtained an IP address but has not established any CIP connections.
  • Steady Red: The module has detected that its IP address is a duplicate IP address.
  • Flashing Red: One or more exclusive owner CIP connections (with the module as target) have timed out, and all the timed-out exclusive owner CIP connections have not yet been re-established.
