Use the Control Expert EtherNet/IP configuration tool to perform a diagnostic test of the EtherNet/IP module and all other devices in your configuration.
NOTE: Diagnostic testing is performed directly between the Control Expert EtherNet/IP configuration tool software running on your PC and the target EtherNet/IP device.
The software displays the results of the diagnostic test, as follows:
-
the task bar’s Module State indicator reads Diagnostic
-
the Devices window depicts the state of connections for each device using a:
-
green icon, indicating all connections are functioning
-
red icon, indicating at least one connection has failed
-
gray icon, indicating a rack optimized module connection
-
a diagnostic tab is added to the properties window for each EtherNet/IP device and I/O module displaying:
-
each connection’s status, information, and performance data, and
-
the value of each input and output
Performing a Diagnostic Test
To perform a diagnostic test in the Control Expert EtherNet/IP software:
|
Step
|
Action
|
|
1
|
Do one of the following:
The configuration tool enters its diagnostic state.
|
|
2
|

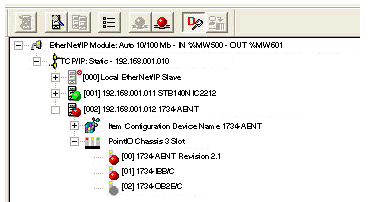

The EtherNet/IP module enters a diagnostic state and displays the status of each connected device and module. An example of a diagnostic status display appears, below:
In the above example:
-
a green icon indicates that all connections are functioning for the device at address [001]
-
a red icon indicates at least one connection has failed for the device at address [002]
-
red icons indicates that at least one connection has failed for the modules at slots [00] and [01]
-
a gray icon indicates a rack optimized connection, exists for the module at slot [02]
|
|
3
|
To exit diagnostic mode, repeat the command in step 2.
|
, or
