Modbus TCP Explicit Message Example: Read Register Request
Original instructions
About us
Introduction
Use the DATA_EXCH function block to send a Modbus TCP explicit message to a remote device at a specific IP address to read a single word located in the remote device.
The Management_Param, the Data_to_Send, and the Received_Data parameters define the operation.
EN and ENO can be configured as additional parameters.

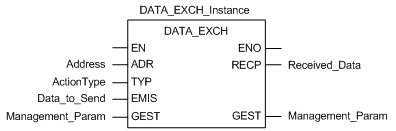

Implementing the DATA_EXCH Function Block
To implement the DATA_EXCH function block, create and assign variables for the for following:
Configuring the Address Variable
The Address variable identifies the explicit message originating device and the target device. Note that the Address variable does not include the Xway address elements {Network.Station} because you are not bridging through another PAC station. Use the ADDM function to convert the following character string to an address:
ADDM(‘0.1.0{192.168.1.7}TCP.MBS’), where:
Configuring the ActionType Variable
The ActionType variable identifies the function type for the DATA_EXCH function block:
Variable
Description
Value (hex)
ActionType
Transmission followed by wait for response
16#01
Configuring the DataToSend Variable
The DataToSend variable contains the target register address and the number of registers to read:
Variable
Description
Value (hex)
DataToSend[0]
  • High byte = Most significant byte (MSB) of register address 16#15 (21 decimal)
  • Low byte = function code: 16#03 (03 decimal)
16#1503
DataToSend[1]
  • High byte = Most significant byte (MSB) of the number of registers to read: 16#00 (0 decimal)
  • Low byte = Least significant byte (LSB) of register address: 16#0F (15 decimal)
16#000F
DataToSend[2]
CIP request instance information:
  • High byte = not used: 16#00 (0 decimal)
  • Low byte = Least significant byte (LSB) of the number of registers to read: 16#01 (1 decimal)
16#0001
NOTE: For detailed information about M580 network topologies, refer to the Modicon M580 Standalone System Planning Guide for Frequently Used Architectures and Modicon M580 System Planning Guide for Complex Topologies.
Viewing the Response
Use a Control Expert Animation table to display the ReceivedData variable array. Note that the ReceivedData variable array consists of the entire data buffer.
To display the Modbus TCP response, follow these steps:
Step
Action
1
In Control Expert, select Tools → Project Browser.
2
In the Project Browser, select the Animation Tables folder, and click the right mouse button.
Result: A pop-up menu appears.
3
Select New Animation Table in the pop-up menu.
Result: A new animation table and its properties dialog open.
4
In the Properties dialog, edit the following values:
Name
Type in a table name. For this example: ReceivedData.
Functional module
Accept the default <None>.
Comment
(Optional) Type your comment here.
Number of animated characters
Type in 100, representing the size of the data buffer in words.
5
Click OK to close the dialog.
6
In the animation table’s Name column, type in the name of the variable assigned to the databuffer: ReceivedData and press Enter.
Result: The animation table displays the ReceivedData variable.
7
Expand the ReceivedData variable to display its word array, where you can view the CIP response contained in the ReceivedData variable.
NOTE: Each array entry presents 2 bytes of data in little endian format. For example, ‘03’ in word[0] is the low byte, and ‘02’ is the high byte.
