This topic illustrates an example of a BMENOC0301 Ethernet communication module providing IP addresses via BootP and DHCP to clients in local and remote subnets. This feature is supported by BMENOC0301/11 firmware v2.05 or later.
MSP30-08040SCZ9MRHHE2A details:
-
The remote client subnet is 192.168.20.0/24.
-
The local BMENOC0301 subnet is 192.168.30.0/24.
-
The router interface on the remote subnet is 192.168.20.240.
-
The router interface on the local subnet is 192.168.30.240.
-
The remote DHCP clients are connected to the remote subnet via the managed switch (TCSESM163F2CU0).
-
The local DHCP clients are connected to the BMENOC0301 module.
-
The router is MSP30-08040SCZ9MRHHE2A.

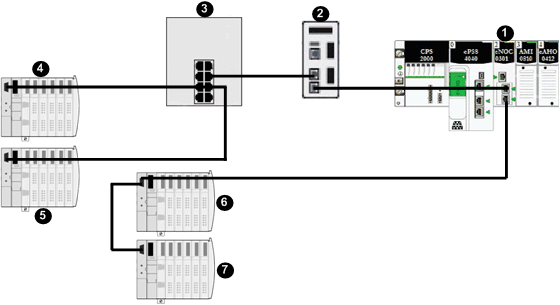

BMENOC0301 configuration:
1
DHCP server (BMENOC0301 module on local rack @ 192.168.30.10)
2
MSP30-08040SCZ9MRHHE2A router (@ 192.168.30.240 on DHCP server side; @ 192.168.20.240 to managed switch (3)
3
managed switch
4
remote BootP client (STBNIP2311 module @ 00:00:54:1c:07:1b)
5
remote DHCP client (STBNIP2311_011)
6
local BootP client (STBNIP2311 module @ 00:00:54:12:d9:18)
7
local DHCP client (STBNIP2311_022)
BMENOC0301 module’s DHCP server configuration:

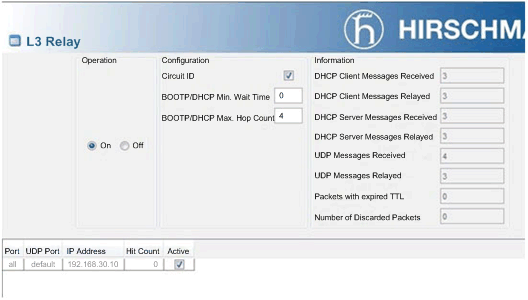

MSP30 DHCP relay agent configuration:
