Status Summary
Original instructions
About us
Open the Page

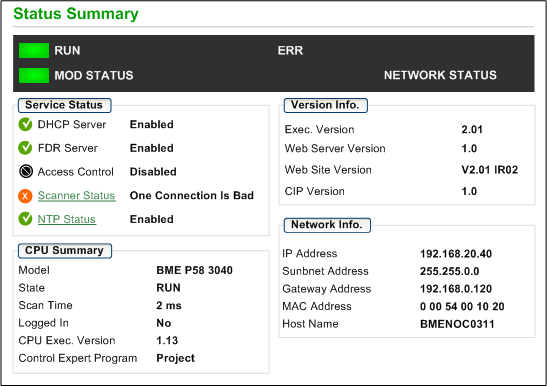

Access the Status Summary page on the Diagnostics tab (Menu → Module → Summary):
Diagnostic Information
The objects on this page provide status information:
Parameters
Description
LEDs
The black field contains LED indicators (RUN, ERR, etc.).
NOTE: The diagnostics information is explained in the description of LED activity and indications.
Service Status
green
The available service is operational and running.
red
An error is detected in an available service.
black
The available service is not present or not configured.
Version Info.
This field describes the software versions that are running on the Ethernet communications module.
CPU Summary
This field describes the CPU hardware and the applications that are running on the CPU.
Network Info.
This field contains network and hardware address information and connectivity that corresponds to the Ethernet communications module.
