Overview
Use the Control Expert ping function to send an ICMP echo request to a target Ethernet device to determine:
The target device is identified by its IP address setting. Enter only valid IP addresses in the IP Address field.

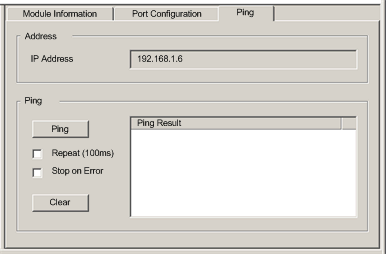

The ping function can be performed in the Ping page of the Online Action window:
Pinging a Network Device
Ping a network device:
Step
Action
1
In the DTM Browser, select the communication module upstream of the remote EtherNet/IP device you want to ping.
2
Click the right mouse button and select Device Menu → Online Action in the pop-up menu. The Online Action window opens.
3
In the Online Action window, select the device you want to ping. The window displays pages containing online information for the selected device.
NOTE: The specific collection of displayed pages depends on the type of device selected:
  • the communications module
  • a remote EtherNet/IP device
  • a remote Modbus TCP device
4
Select the Ping page. To send...
  • a single ping, de-select the Repeat checkbox
  • a series of pings—1 every 100 ms—select Repeat checkbox
5
(Optional) Select Stop on Error to stop pinging an unsuccessful communication.
6
Click Ping once to begin pinging.
7
Click Ping a second time to stop repeated pinging, where no error has been detected.
8
The Ping Result box displays the ping outcome. Click Clear to empty the Ping Result box.
