Alarm Viewer

Open the Page

Access the Alarm Viewer page from the Diagnostics tab (Menu → System → Alarm Viewer):

NOTE: This page is updated every 5 seconds.

Diagnostic Information

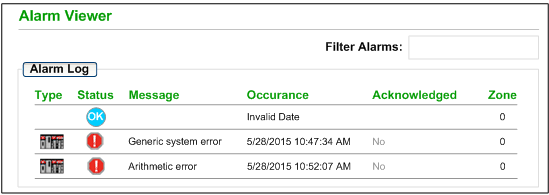

The Alarm Viewer page reports detected application errors. You can read, filter, and sort information about alarm objects on this page. Adjust the type of information displayed by the Alarm Viewer in the Filter Alarms box.

Each alarm has a timestamp, a description, and an acknowledgement status:

critical (red)
acknowledged (green)
information (blue) (These alarms do not require acknowledgement.)

This table describes the components of the page:

Column	Description
Type	This column describes the alarm type.
Status	STOP	You need to acknowledge the alarm.
	ACK	An alarm has been acknowledged.
	OK	An alarm does not require acknowledgment.
Message	This column contains the text of the alarm message.
Occurrence	This column contains the date and time that the alarm occurred.
Acknowledged	This column reports the acknowledged status of the alarm.
Zone	This column contains the area or geographical zone from which the alarm comes (0: common area).
