Performance

Open the Page

Access the Performance page from the Diagnostics tab (Menu → Module → Performance):

NOTE:

Move the mouse over the dynamic graphs to see the current numeric values.
This page is updated every 5 seconds.

Diagnostic Information

This table describes the performance statistics:

Field	Description

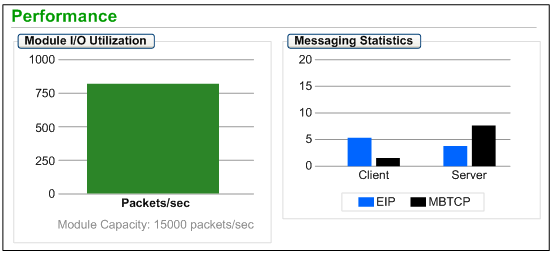

Module I/O Utilization	This graph shows the total number of packets (per second) the communications module can handle at once.
Messaging Statistics	This graph shows the number of Modbus/TCP or EtherNet/IP messages per second for the client or server.

EtherNet/IP™

A network communication protocol for industrial automation applications that combines the standard internet transmission protocols of TCP/IP and UDP with the application layer common industrial protocol (CIP) to support both high speed data exchange and industrial control. EtherNet/IP employs electronic data sheets (EDS) to classify each network device and its functionality.
