Software Requirements
(Original Document)
About us
Overview
As regards the software requirements presented in the
quick start guide
, Unilink is used for configuring and tuning the
Lexium 15
.

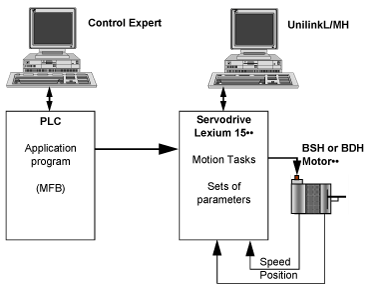

Functional Diagram for the Lexium 15••
The following diagram shows the different functions performed by the PLC and the servodrive:
