Application Architecture with an ATV 32
(Original Document)
About us
Overview
The proposed architecture is simple and designed to assimilate the implementation principles of motion control.
Other equipment can be added to this architecture to manage several axes.
Illustration

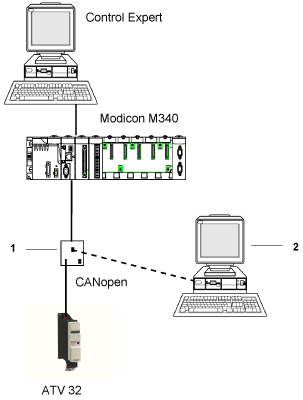

The following figure shows the architecture used in the application that includes an
ATV 32
.
1
Junction box
2
SoMove
