Overview
Following the software requirements presented in the Quick Start Guide, Lexium CT is used for configuring and tuning the Lexium 32.

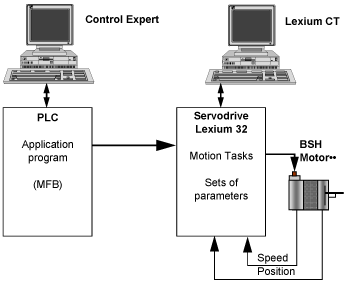

Functional Diagram for the Lexium 32
The following diagram shows the different functions performed by the PLC and the servodrive:
Versions
The following table lists the hardware and software versions used in the Architecture, enabling the use of MFBs in Control Expert.
Device
Software version used in the example
Version of firmware
Modicon M340
Unity Pro V5.0
>2.0
Lexium 32
Lexium CT V1.0
V1.x for Lexium 32 Advanced
V1.y for Lexium 32 Modular
