Software Requirements
(Original Document)
About us
Overview
As regards the software requirements presented in the quick start guide, PowerSuite is used for configuring and tuning the Lexium 05.
PowerSuite for Lexium 05 enables tuning of the axis and guarantees a simple method for configuring the parameters of a Lexium 05 servodrive.
Unilink L/MH for Lexium 15•• does the same, but for Lexium 15•• servodrive.

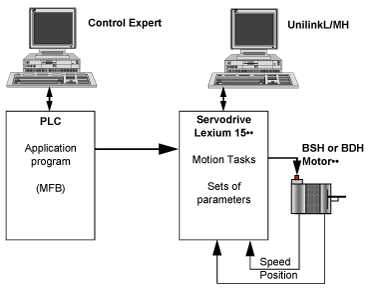

Functional Diagram for the Lexium 15••
The following diagram shows the different functions performed by the PLC and the servodrive:
Versions
The following table lists the hardware and software versions used in the architecture, enabling the use of MFBs in Control Expert.
Device
Software version used in the example
Version of firmware
Modicon M340
Unity Pro V4.0
-
Lexium 15LP
Unilink V1.5
V1.45 only MFB Function
V2.36 Managed by MTM
Lexium 15MH
Unilink V4.0
Compatible sInce V6.64
